High-pressure resin insulated hose for mineral heat furnace
Applicable standard: SAE 100R8 / DIN EN ISO 3949 standard
Medium pressure hydraulic lines from 100 to 420 bar

产品详细PDF下载

Filter by:

grade

Inner Diameter (inch)

Order number	DN	grade	Inner Diameter (inch)	Inner Diameter（mm）	Outer Diameter(mm)	Maximum working pressure (bar)	Maximum working pressure（psi）	Burst pressure bar	Minimum bending radius (mm)

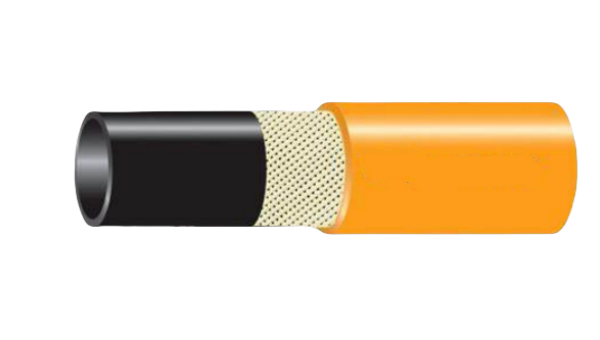

● Lining layer: thermoplastic elastomer
● Reinforcement layer: one or more layers of aramid fiber weave
● Outer adhesive layer: polyurethane, orange, no needle punch
● Continuous operating temperature : -40°C to 100°C, temperature not exceeding 70°C (air and water-based fluids)
● Maximum operating temperature: 121°C
● It is suitable for compact, high-pressure, light-weight, and small length changes
● Suitable for hydraulic applications with higher wear resistance for petroleum, synthetic or water-based fluids in hydraulic systems.
● Suitable for agricultural machinery, earthmoving, safety, rescue and material handling equipment, power maintenance insulated bucket boom trucks, but also suitable for industrial gas and metallurgical mine furnace applications.
