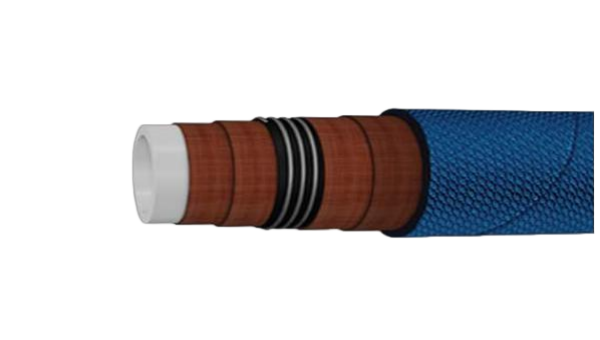

KUNGFLEX ​Chem Master Chemical tubes

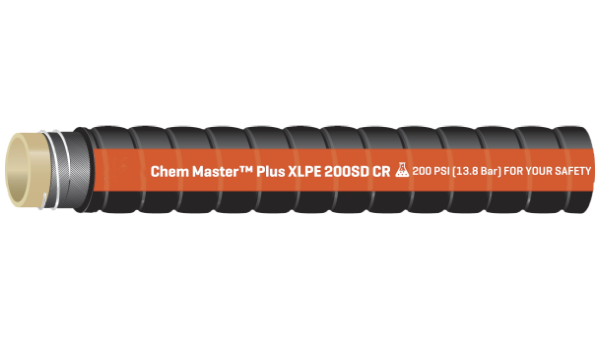

Chem Master™ Plus XLPE(125-200) SD

Meets USP Class V and FDA standards
The inner rubber material FEP has excellent chemical corrosion resistance
筛选依据:
Order number DN grade Inner Diameter (inch) Inner Diameter(mm) Outer Diameter(mm) Maximum working pressure (bar) Maximum working pressure(psi) Burst pressure bar Weight (kg/m)



● Operating temperature: -40°F to +300°F (-40°C to +149°C)
● Inner rubber line: Class T FEP, white. The inner rubber is lined with Gatron modified cross-linked polyethylene.
● Reinforcing layer: synthetic high-strength cotton thread and steel wire spiral.
● Cover: P EPDM rubber, blue corrugated surface with orange spiral ribbon
● Design factor: 4:1
● Recommended use: Tank trucks, barges, storage tanks that can be used for the transfer of most basic chemical substances and chemicals.
