Name: KC300 Quick Plug Air Tube
Brand: KUNGFLEX
Availability: PreOrder
Rating: 4.8 (38 reviews)

Home > Products > hose > Industrial hose > Liquid cooling hose

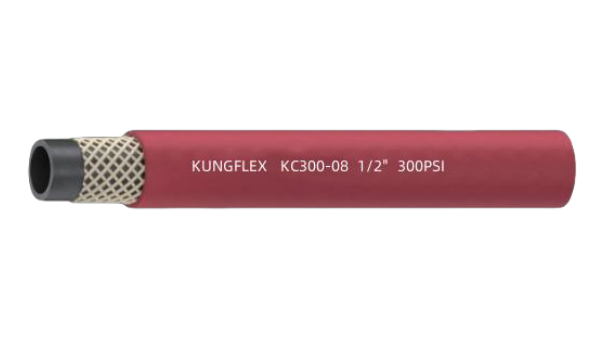

KC300 Quick Plug Air Tube

Pneumatic hose for automotive 6-axis robots (KC300 Quick Plug Air Tube)

Feature: PUSH-LOK quick plug design, works directly with PUSH-LOK push-to-connect fittings, no crimping required

Temperature range: -40°C ~ +100°C (air: +70°C, water: +85°C)

Filter by:

The hose is nominal ID DN

Inner Diameter (inch)

Order number	The hose is nominal ID DN	Inner Diameter (inch)	Outer Diameter(mm)	Maximum working pressure (bar)	Maximum working pressure（psi）	Burst pressure bar	Minimum bending radius (mm)	Weight (kg/m)

● Inner rubber layer: synthetic rubber

● Reinforcement layer: 1 layer of fiber braid

● Outer rubber layer: synthetic rubber

● Outer rubber layer is available in multiple colors: black, blue, red, green (N), gray (A), white, yellow

● Temperature range: -40°C ~ +100°C (air: +70°C, water: +85°C)

● Media: air, water, water glycol, oil-water emulsion, antifreeze, lubricating oil and petroleum-based hydraulic oil

● Feature: PUSH-LOK quick plug design, works directly with PUSH-LOK push-to-connect fittings, no crimping required

● Precaution: when used with air above 1.0 MPa, the hose must be needled

Compatible PUSH-LOK push-to-connect fittings for KC300 hose

Fitting models: KF-3CF82 / KF3D082 / KF3C582 / KF30182 / KF30682 / KF39282 / KF3JC82
