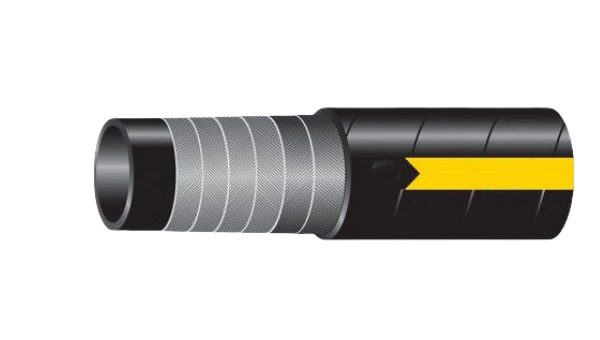

Inner Rubber Layer: Oil-resistant synthetic rubber
Reinforcement Layer: 4 layers of high-tensile steel wire winding (diameter <31)
6 layers of high-tensile steel wire winding (diameter =32, 40, 50)
Outer Rubber Layer: MSHA-approved synthetic rubber with high resistance to temperature, wear, and ozone
| Order number | DN | grade | Inner Diameter (inch) | Inner Diameter(mm) | Outer Diameter(mm) | Maximum working pressure (bar) | Maximum working pressure(psi) | Burst pressure bar | Minimum bending radius (mm) | Weight (kg/m) |
|---|
● Continuous operation: -40°C~+121°C
● Maximum working temperature: 125°C
● Special features: Assembly has passed one million pulse tests (ISO 6802).
● Recommended fluid media: Mineral oil, water, Class 3.0 glycol, mineral oil–water emulsions.
